This page describes some internals of the Ardumower software architecture.
Finite state machine
Main component of the software is a so called 'finite state machine', that means there exists a set of states ("OFF", "FORWARD", "ROLL", etc.) that the robot can be in. Depending on events (sensor is triggering etc.), the robot will enter a new state.

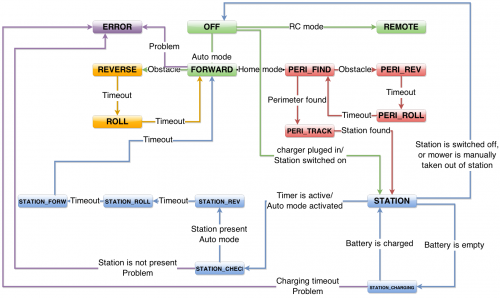

State diagram (Note: The drawing has been created using draw.io)
Implemented updates:
- If obstacle during reverse => roll
- If obstacle during roll => forward
C++ classes/interfaces
